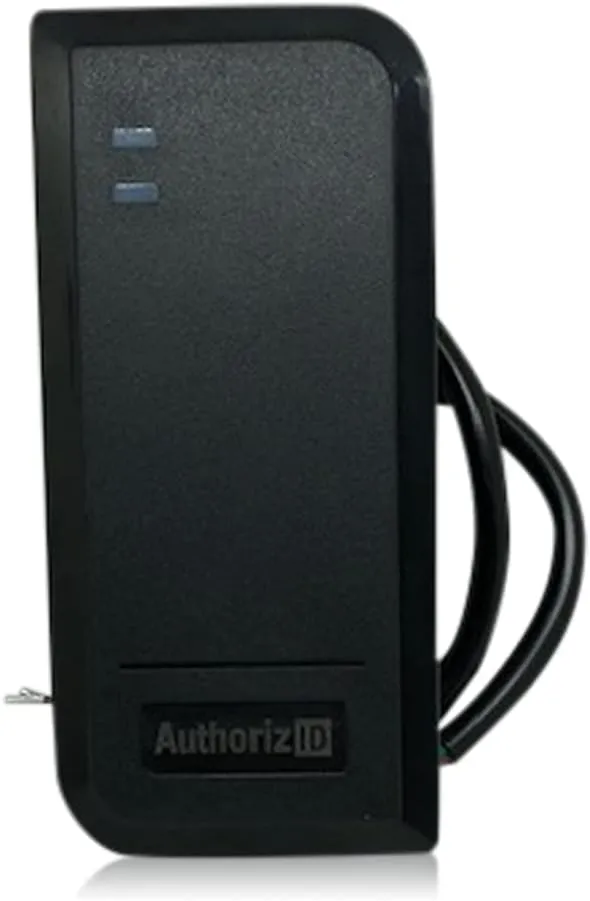

- COMMON FORMAT: Formatted with the standard 26-bit H10301 format used on most access control security systems. This is the most common format for 26 bit readers. COMPATIBLE: This card reader works with the same 26 bit weigand readers that both the 1386 ISOProx and 1326 ISOProx key cards work with. Compatible 125khz card readers include: Proxpoint Plus, Thinline II, MiniProx, RP40, RP10, RPK40, RP15, Prox80, ProxPro, EntryProx 4045, Bosch ARD-AYJ12, Viking PRX-2, and many more.
- DIMENSIONS: Mullion mount reader 4” X 1 7/8” X 3/4” (10cm X 4.5cm X 1.8cm)
- LONG WIRE PIGTAIL: Long 14 inch (36 cm) wire harness containing 6 shielded 22 gauge wires.
- INSTALLATION: mounting plate makes for easy installation. Same standard wiring as other leading card readers. Installation instructions included. Technical support available for questions regarding installation.
- WEATHER RESISTANT: With an outdoor rating of IP68 you can be confident this reader can withstand all outdoor conditions.
This standard 26 bit AuthorizID card reader is H10301 compatible and therefore it accepts the 26 bit cards the most common 26 bit 125 KHz cards. This reader is compatible with most access control systems. This card reader does not accept EM, IClass or Mifare cards.
